Ice Arenas

Climate by Design International has specialized in applying Desiccant Dehumidifiers to Ice Arenas for over 25 years. A properly sized desiccant system is the most cost effective way to condition an ice arena to eliminate fog and condensation because it is the only reasonable way to get very low humidity air.

An ARID-Ice® unit by CDI has few moving parts, is simple, and reduces electrical loads by transferring the dehumidification duty and most of the latent load from the ice-plant.

General Ice Arena Design and Application Considerations

With the explosion of popularity of curling, hockey, and figure skating, most ice arena operators have endeavored to extend their operating season. Functions at arenas may be quite varied, so the anticipated air conditioning loads will also vary.



Ice Arenas Curling

If the arena will be used for functions other than ice skating, then the designer must provide systems with great flexibility. Within an ice skating arena, the HVAC system must be designed with an understanding of the ventilation requirements during times when the arena is full of spectators.

Ice Arena hockey

The designer also needs to be concerned with the air velocities being directed at the ice sheet level. Low velocity air streams will help minimize the load on the refrigeration equipment. Too high of a velocity at the sheet level can cause the ice to melt or sublimate.

Ice Arenas Ice Skating

When the necessary ventilation air is being introduced into the arena, or even as unwanted air infiltrates the building, there is a great potential for fog to form inside if the arena is not being conditioned. Fog is formed when moisture-laden air is allowed to cool below its dew point. This is most likely to occur close to the ice surface within the boarded area (playing area). This can cause dripping and other serious problems for the facility.

Foggy Ice Arena

Fog can be controlled by reducing the indoor dewpoint with a dehumidification system or high-latent-capacity air-conditioning and by delivering appropriate air velocities to bring the air in contact with the ice. Desiccant-based air-conditioning systems have had great success in reducing the dew point temperature sufficiently to prevent fog in ice arenas.

Arid-Ice Dehumidification Series

ARID-Ice® Dehumidification Series Brochure

ARID-Ice DH-S0 Product Application Flyer

ARID-Ice® DH-S0 Product Application Flyer

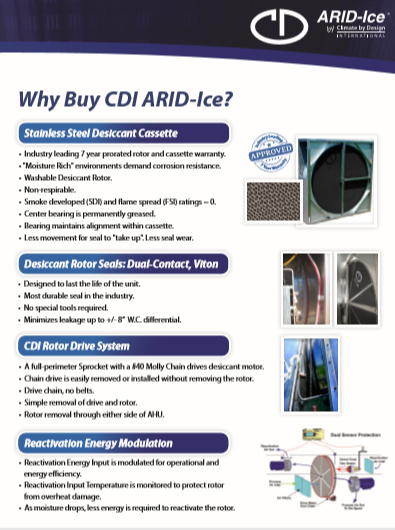

Why Buy CDI ARID-ICE

Why Buy CDI ARID Ice



Arid Ice Application Guide

Application Guidlines

Ice Arena Environmental Standards or Requirements

Ice rink temperatures are usually maintained between 40 and 60°F.

 Function Ice Softness Ice Temperature*
 Hockey Players Hard 20 to 22°
 Curlers Hard 20 to 22°
 Figure Skaters Med-Soft 24 to 26°
 Recreational Skaters Soft 26 to 28°

* at 45°F air temperature and 1-inch ice thickness


Contact our Sales Engineers with your questions about these units at sales@cdihvac.com or see our Contact Us page.

Proud Members of:

Ice Skating Institute
Minnesota Ice Arena Manager's Association
U.S. Ice Rink Association
Metropolitan Ice Rink Managers Association
North East Ice Skating Managers Association
Wisconsin Ice Arena Management Association

For more information, please contact CDI direct at sales@cdihvac.com

Reference Sources:

  1. ASHRAE Applications Handbook (2007), Places of Assembly, Ice Rinks, 4.5
  2. ASHRAE Refrigeration Handbook (2006), Ice Rink Conditions, 35.4
